| Manufacturer Part Number | W4E400-CP14-70 |
| Manufacturer | ebm-papst Inc. |

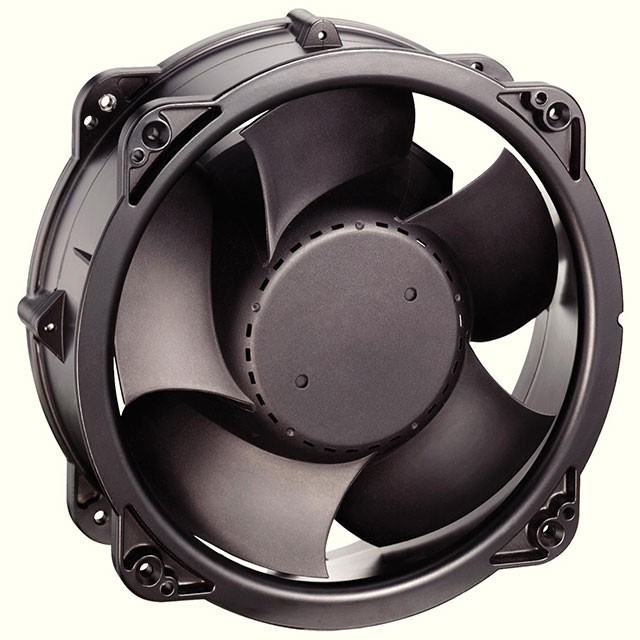

| Description | FAN AXIAL 528X80MM 115VAC WIRE |
| Manufacturer Part Number | W4E400CP1470 |
| Series | W4E400A |
| Part Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 528mm Dia |
| Width | 80.00mm |
| Air Flow | 2910.0 CFM (81.48m3/min) |
| Static Pressure | 0.301 in H2O (75.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Noise | 73.0 dB(A) |
| Power (Watts) | 250W |
| RPM | - |
| Termination | 2 Wire Leads |
| Ingress Protection | IP44 |
| Operating Temperature | -40 ~ 176～F (-40 ~ 80～C) |
| Approvals | CE, CSA, UL |
| Weight | 18 lbs (8.2kg) |
