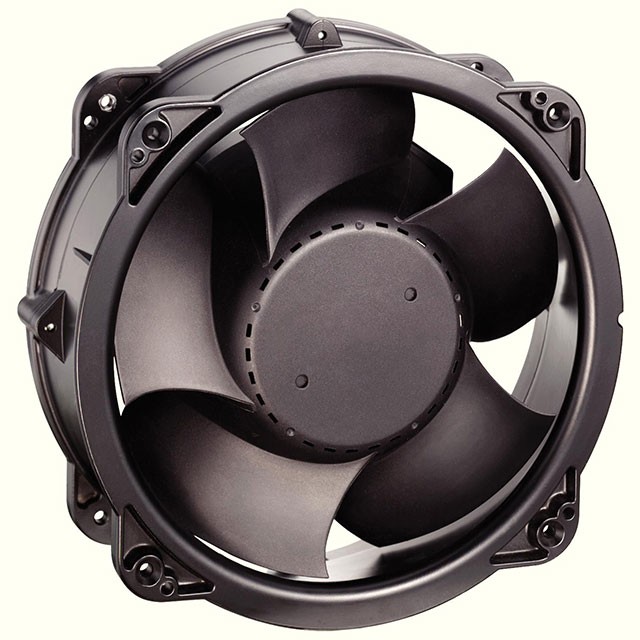

| Manufacturer Part Number | W2D250-CH14-15 |
| Manufacturer | ebm-papst Inc. |
| Description | FAN AXIAL |
| Manufacturer Part Number | W2D250CH1415 |
| Series | W2D250 |
| Part Status | Active |
| Voltage - Rated | 460VAC |
| Size / Dimension | Round - 320mm Dia |
| Width | 86.50mm |
| Air Flow | - |
| Static Pressure | 0.482 in H2O (120.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial, 3 Phase |
| Features | Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 160W |
| RPM | 2750 RPM |
| Termination | 6 Wire Leads with Splice Terminals |
| Ingress Protection | IP44 |
| Operating Temperature | -13 ~ 140～F (-25 ~ 60～C) |
| Approvals | CE |
| Weight | - |
