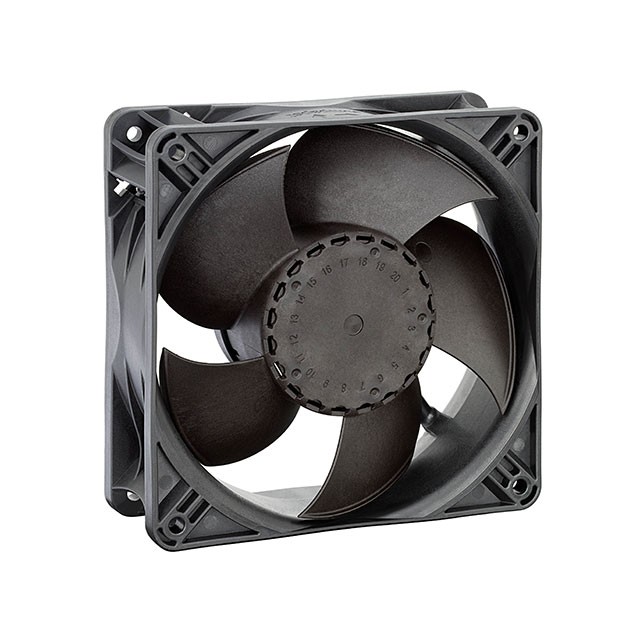

| Manufacturer Part Number | R2E225-AT55-12 |
| Manufacturer | ebm-papst Inc. |
| Description | MOTORIZED IMPELLER |
| Manufacturer Part Number | R2E225AT5512 |
| Series | R2E225 |
| Part Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 225mm Dia |
| Width | 83.00mm |
| Air Flow | - |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 125W |
| RPM | 2600 RPM |
| Termination | 4 Wire Leads with Splice Terminals |
| Ingress Protection | IP44 |
| Operating Temperature | 131 F (55 C) |
| Approvals | CE, CSA, UL |
| Weight | - |
