| Manufacturer Part Number | R2E225-AG05-20 |
| Manufacturer | ebm-papst Inc. |

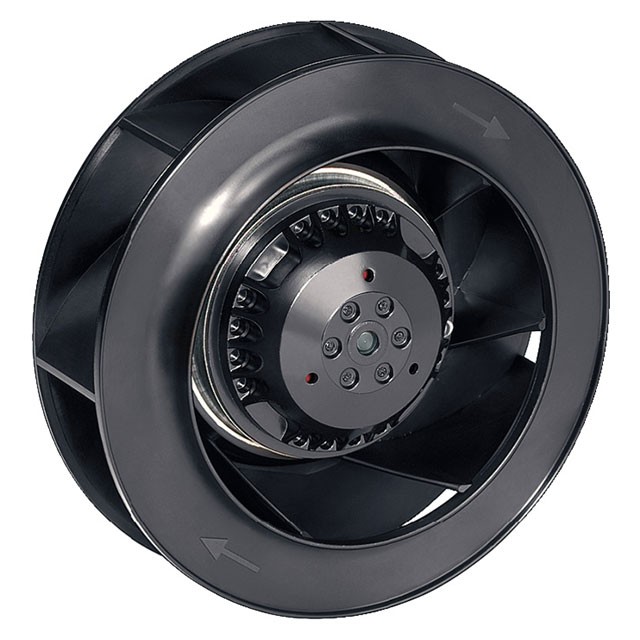

| Description | MOTORIZED IMPELLER |
| Manufacturer Part Number | R2E225AG0520 |
| Series | R2E225 |
| Part Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 270mm Dia |
| Width | 186.0mm |
| Air Flow | - |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 265W |
| RPM | 2700 RPM |
| Termination | 3 Wire Leads with Splice Terminals |
| Ingress Protection | IP20 |
| Operating Temperature | -13 ~ 122°F (-25 ~ 50°C) |
| Approvals | CE, CSA, UL |
| Weight | - |
