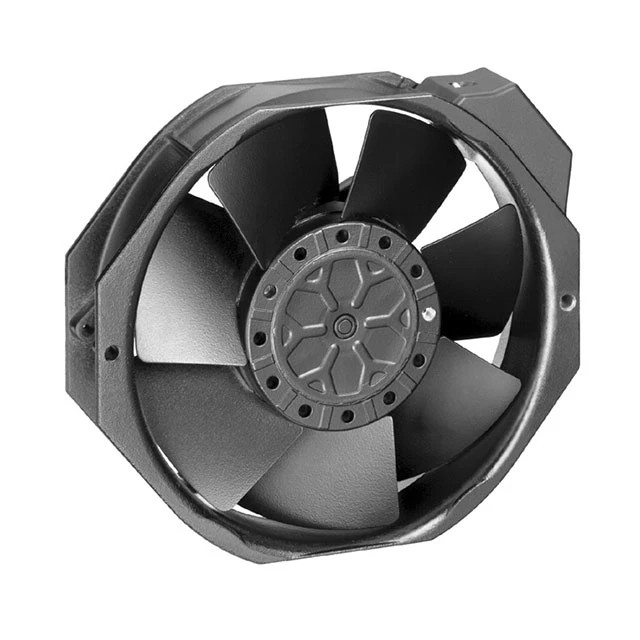

| Manufacturer Part Number | W4D300-DA04-09 |
| Manufacturer | ebm-papst Inc. |
| Description | FAN AXIAL |
| Manufacturer Part Number | W4D300DA0409 |
| Series | W4D300 |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Square - 430mm L x 430mm H |
| Width | 83.90mm |
| Air Flow | - |
| Static Pressure | 0.441 in H2O (110.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial, 3 Phase |
| Features | Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 92.0W |
| RPM | 1520 RPM |
| Termination | 9 Wire Leads with Splice Terminals |
| Ingress Protection | IP44 |
| Operating Temperature | -13 ~ 212°F (-25 ~ 100°C) |
| Approvals | CE |
| Weight | - |
