| Manufacturer Part Number | R4E355-AK05-09 |
| Manufacturer | ebm-papst Inc. |

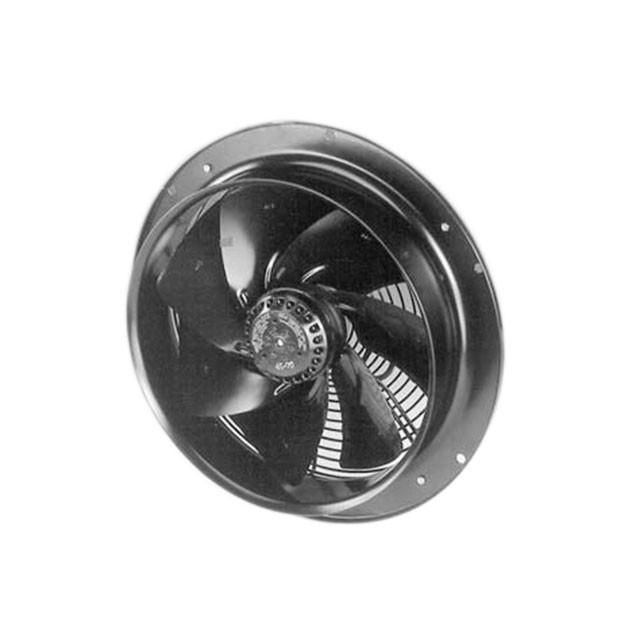

| Description | MOTORIZED IMPELLER |
| Manufacturer Part Number | R4E355AK0509 |
| Series | R4E355 |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Round - 360mm Dia |
| Width | 167.0mm |
| Air Flow | - |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 260W |
| RPM | 1600 RPM |
| Termination | 4 Wire Leads with Ferrules |
| Ingress Protection | IP44 |
| Operating Temperature | -13 ~ 95 F (-25 ~ 35 C) |
| Approvals | CSA, UL |
| Weight | - |
