| Manufacturer Part Number | R3G250-AK41-71 |
| Manufacturer | ebm-papst Inc. |

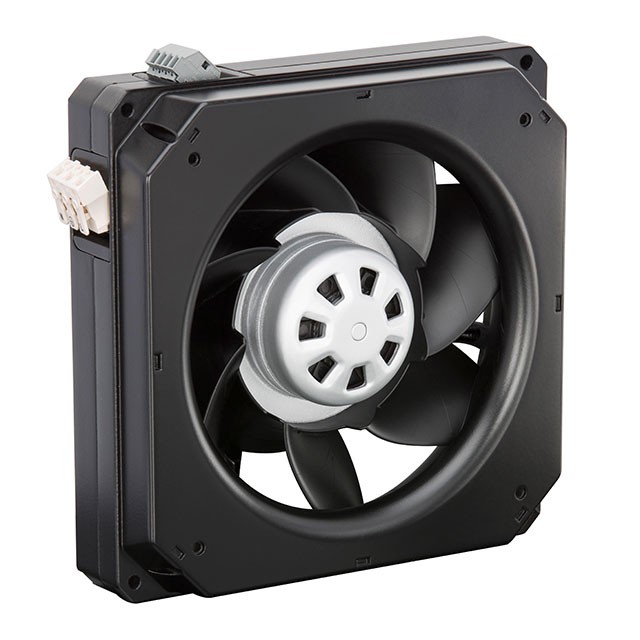

| Description | MOTORIZED IMPELLER |
| Manufacturer Part Number | R3G250AK4171 |
| Series | R3G250 |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Round - 252mm Dia |
| Width | 154.2mm |
| Air Flow | 727.4 CFM (20.37m3/min) |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Alarm, PWM Control, Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 490W |
| RPM | 3390 RPM |
| Termination | 3 Wire Leads with Ferrules, 5 Wire Leads with Ferrules |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Operating Temperature | -13 ~ 113°F (-25 ~ 45°C) |
| Approvals | CCC, CE, CSA, EAC, UL, VDE |
| Weight | - |
