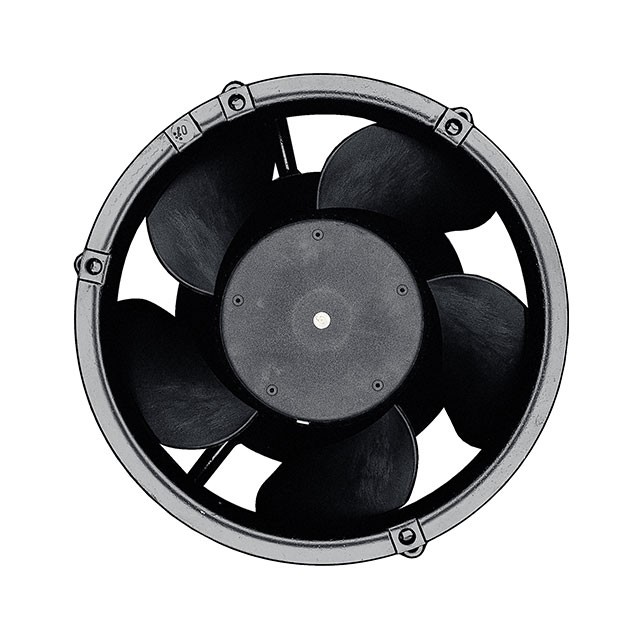

| Manufacturer Part Number | R2E225-AX52-20 |
| Manufacturer | ebm-papst Inc. |
| Description | MOTORIZED IMPELLER |
| Manufacturer Part Number | R2E225AX5220 |
| Series | R2E225 |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Round - 225mm Dia |
| Width | 75.30mm |
| Air Flow | - |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Noise | - |
| Power (Watts) | 165W |
| RPM | 3000 RPM |
| Termination | 4 Wire Leads with Splice Terminals |
| Ingress Protection | IP44 |
| Operating Temperature | -13 ~ 104～F (-25 ~ 40～C) |
| Approvals | CCC, CSA, UL |
| Weight | - |
