| Manufacturer Part Number | R2E190-RA26-20 |
| Manufacturer | ebm-papst Inc. |

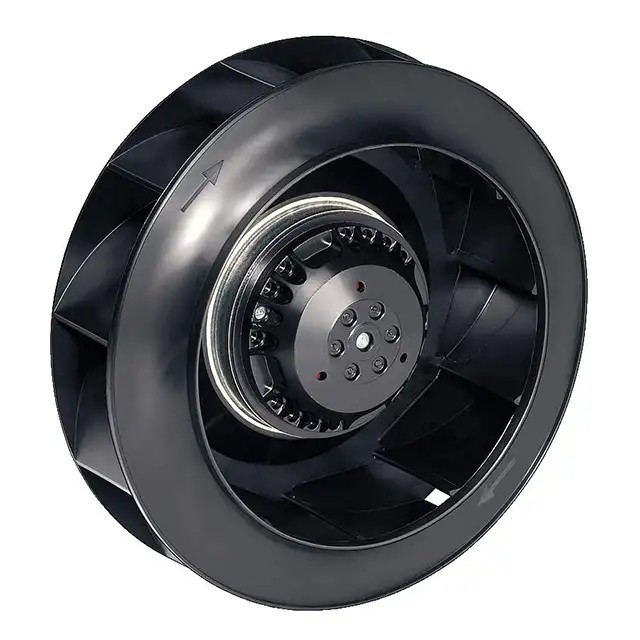

| Description | 190 MM AC CENTRIFUGAL FAN |
| Manufacturer Part Number | R2E190RA2620 |
| Series | RadiCal? R2E190RA |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Round - 190mm Dia |
| Width | 68.50mm |
| Air Flow | 347.3 CFM (9.72m3/min) |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | - |
| Noise | 68.0 dB(A) |
| Power (Watts) | 70.0W |
| RPM | 2500 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP44 |
| Operating Temperature | -13 ~ 167～F (-25 ~ 75～C) |
| Approvals | UL |
| Weight | 2.6 lbs (1.2kg) |
